AudioTekne

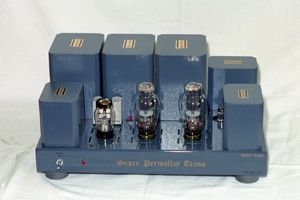

TM-8501PCS 300B A1PP Monaural Main-Amplifier


The Highest 300B A1PP Monaural Main-Amplifier

tm-8501

It is the amplifier that plans, designed without thinking luxury as luxury, for the person who concerns to 300B and hope the highest of the 300B amplifier. And driver stage and power stage are another power supplies respectively. Furthermore, the carbon plate adapter was used for each vacuum tube and it is a luxurious amplifier anyway.

"The 300B highest-class amplifier that used the ultra large super permalloy core-transformer."


Technical Characteristics

Vacuum Tube Monaural Main Amplifier

Input Terminal : Select ; Balance(XLR)& Unbalance(RCA Pin Jack)
Input Sensitivity / impedance : 1V / 3.3K ohm
Power Output : 15W x 2
Harmonic Distortion/td> : Less Than 0.6% / 10W
Frequency Response : 10Hz ... -1dB 20KHz ... -3dB
Residual Noise : Less Than 1mV 8ohm
Power Consumption : 115VA
Power : AC100V 50/60Hz
Dimension : W47.5 x H22.5 x D30.0cm
Weight : 36.0Kg
